JDiag JD101 Code Reader for OBDII/EOBD/CAN

Product Detail

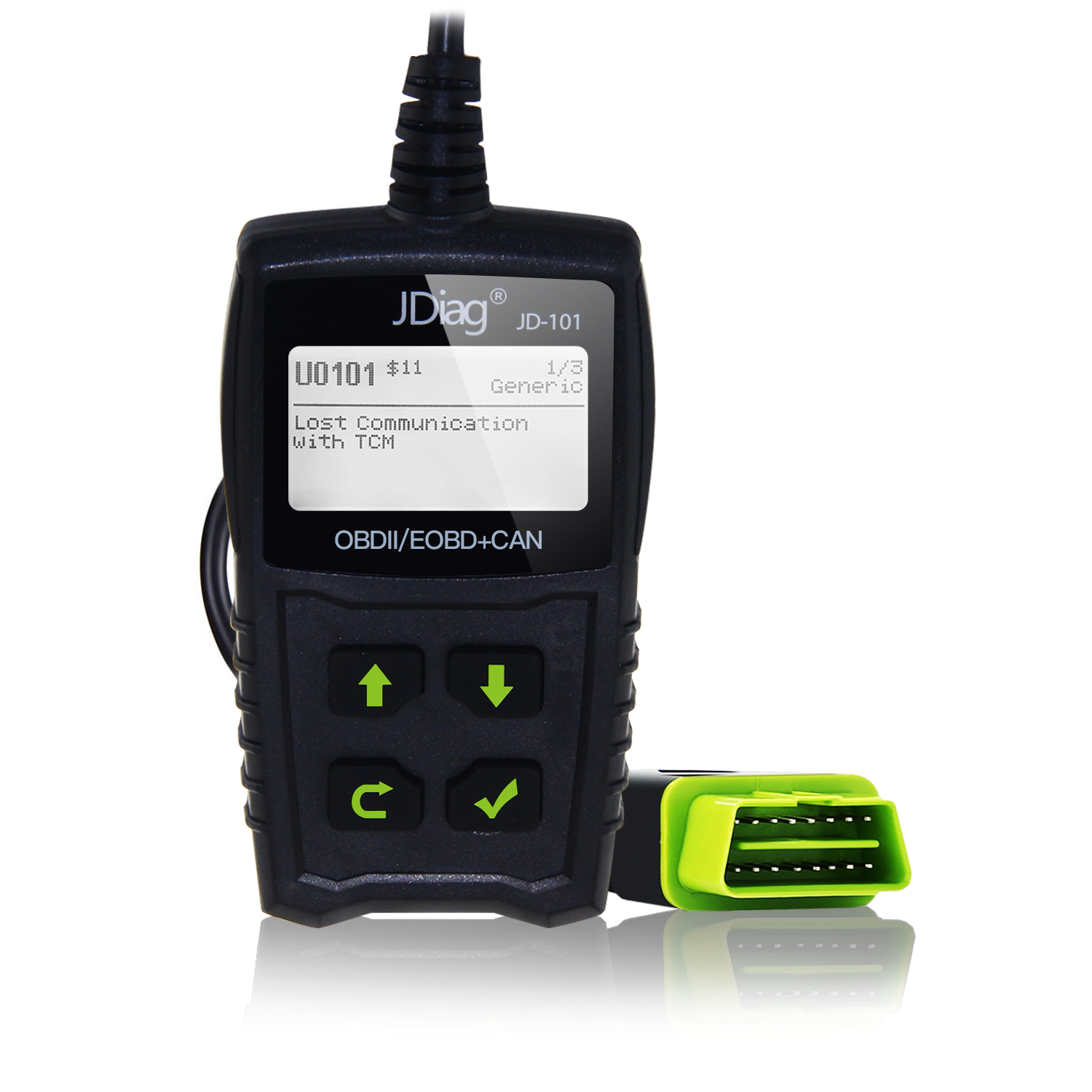

    JDiag JD101 Code Reader is a smart device which able to update online via internet directly. High quality OBD II Cable with size body, large screen display, easy to handle. Can work on ALL 1996 and newer vehicles (OBD II & CAN) - domestic and import.


    1. Works on most 1996 and newer vehicles (OBD II & CAN)-domestic and import.
    2. Build-in One-Click I/M Readiness function for quick State Emissions readiness check and drive cycle verification.
    3. Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes.
    4. Able to read pending codes, stored codes and freeze codes.
    5. Easily determines the cause of the Malfunction Indicator Light( MIL).
    6. Turns off Malfunction Indicator Light (MIL), clears codes and resets monitors.

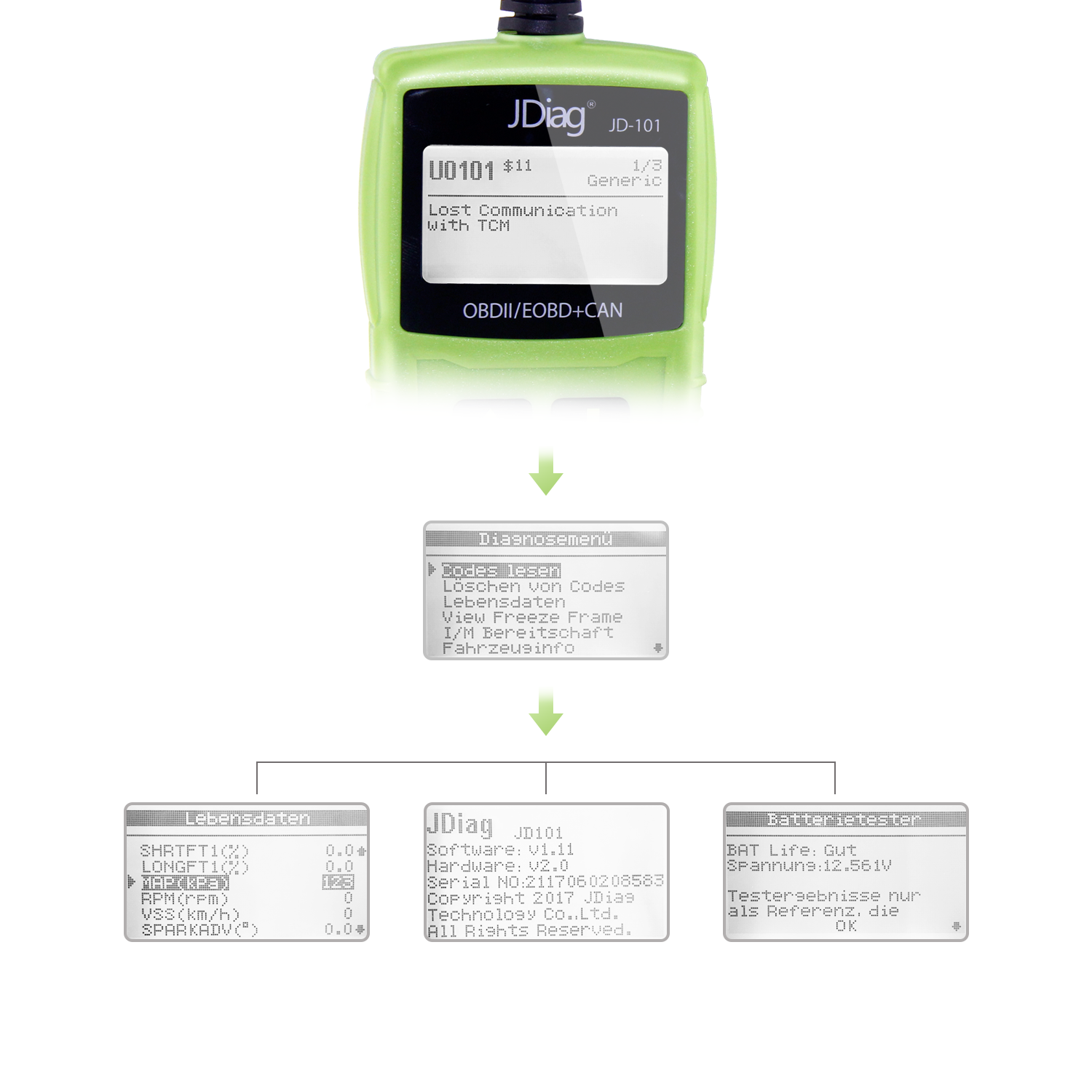

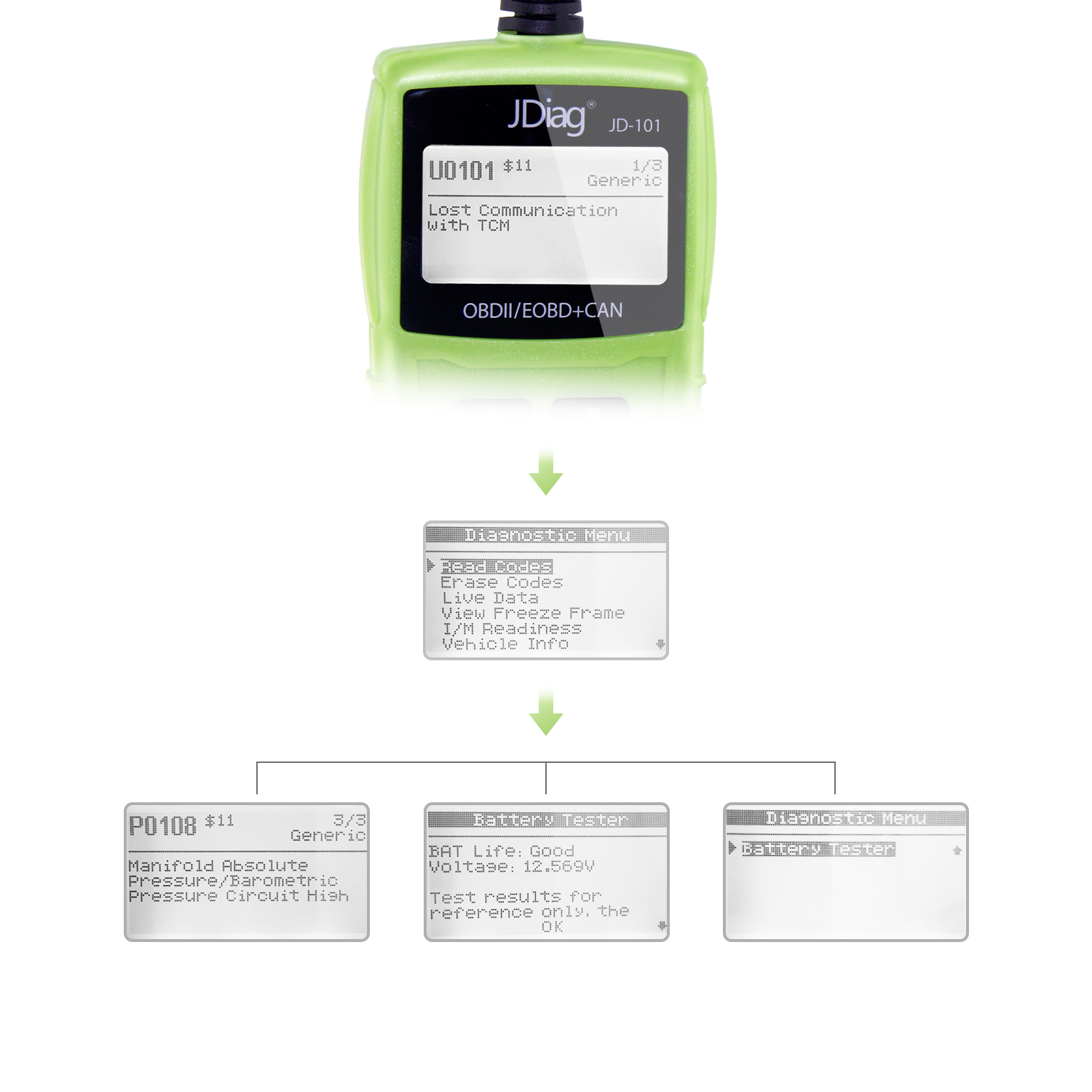

    7. Displays DTC definitions on the 2.4 inch LCD screen.
    8. Views freeze frame data.
    9. Displays monitor and I/M readiness status (emissions).
    10. Reads live data stream, PID more than 130 pcs.
    11. Retrieves vehicle information(VIN, CIN and CVN).
    12. Detect the vehicle battery condition. (Battery test function)

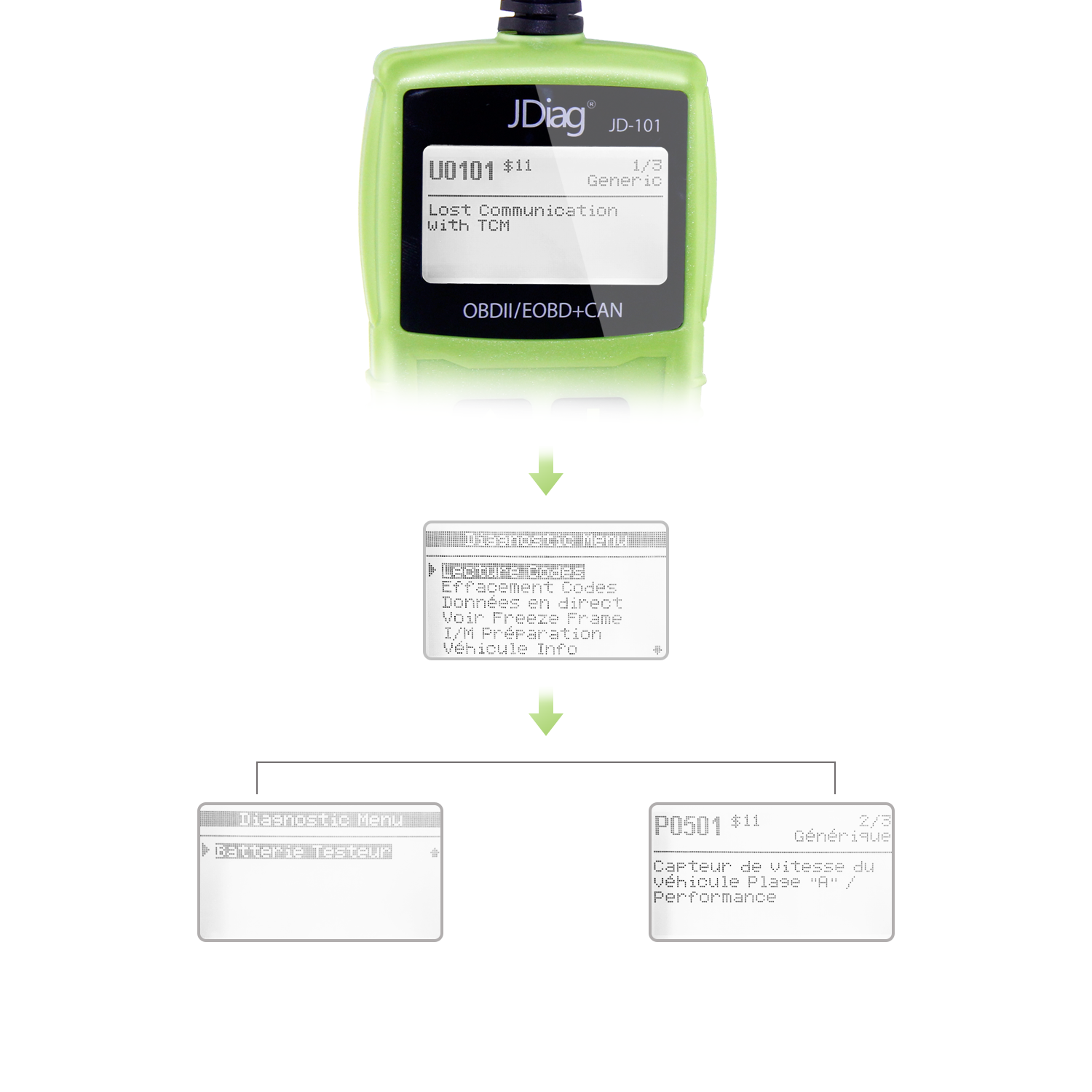

    13. Multilingual menu and DTC definitions- English, Spanish, French, Russian, Germany, Italian, etc.
    14. Build-in DTC lookup function.
    15. Extremely easy to use and highly reliable.
    16. Online upgrade firmware by USB cable.

    1. Display: 2.4'' Black&White LCD display

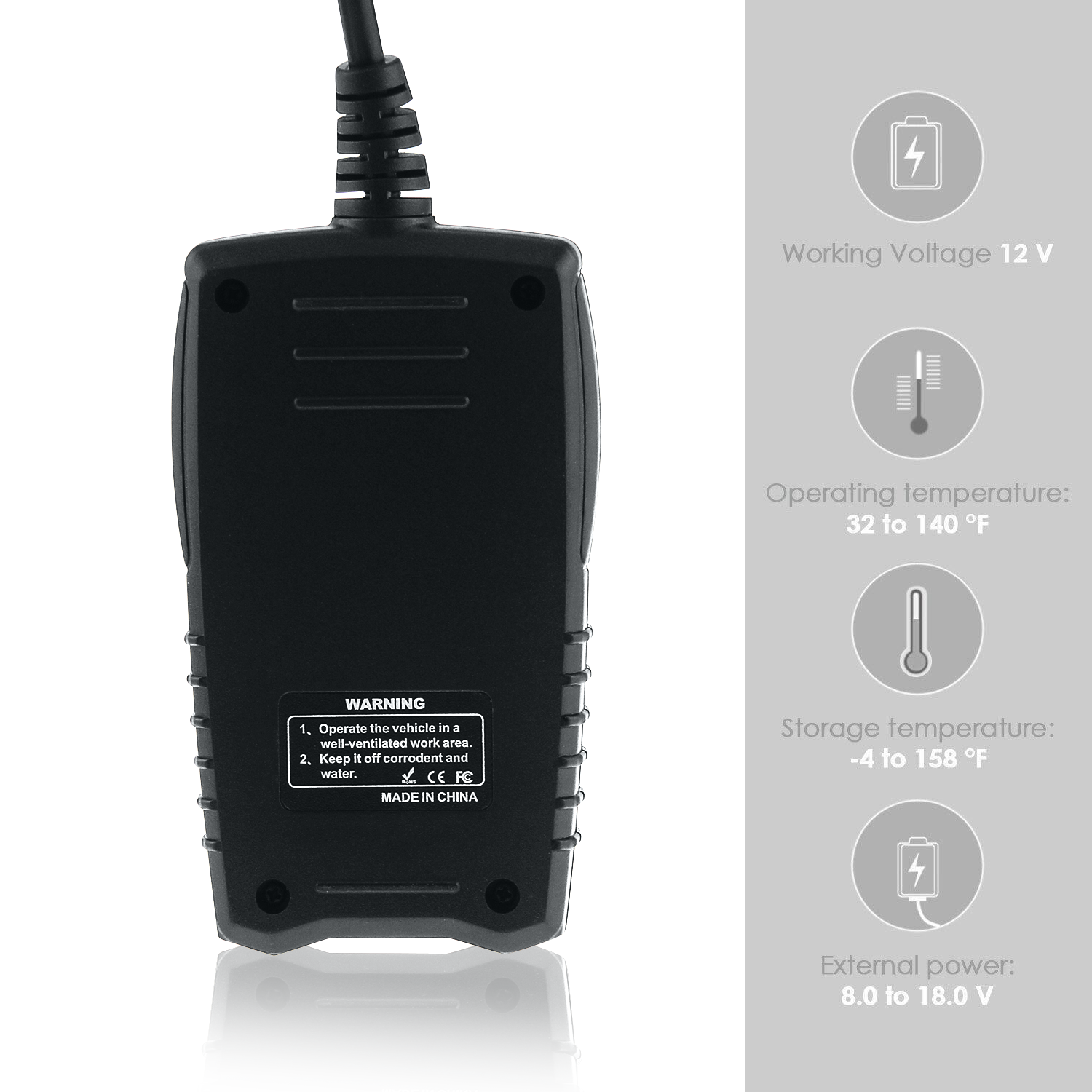

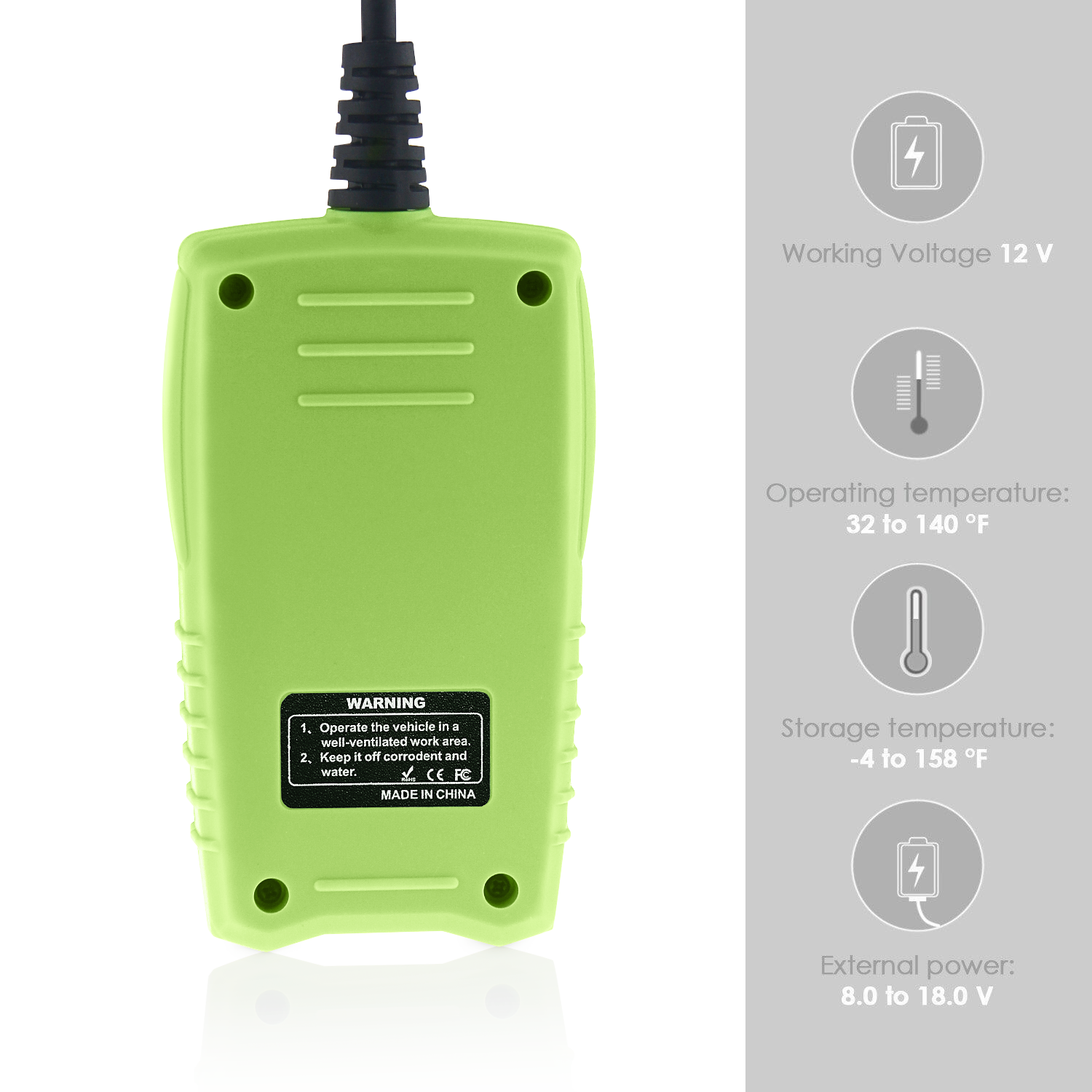

    2. Operating Temperature: 0 to 60°C (32 to 140 F°)
    3. Storage Temperature: -20 to 70°C (-4 to 158 F°)
    4. External Power: 8.0 to 18.0 V power provided via vehicle battery

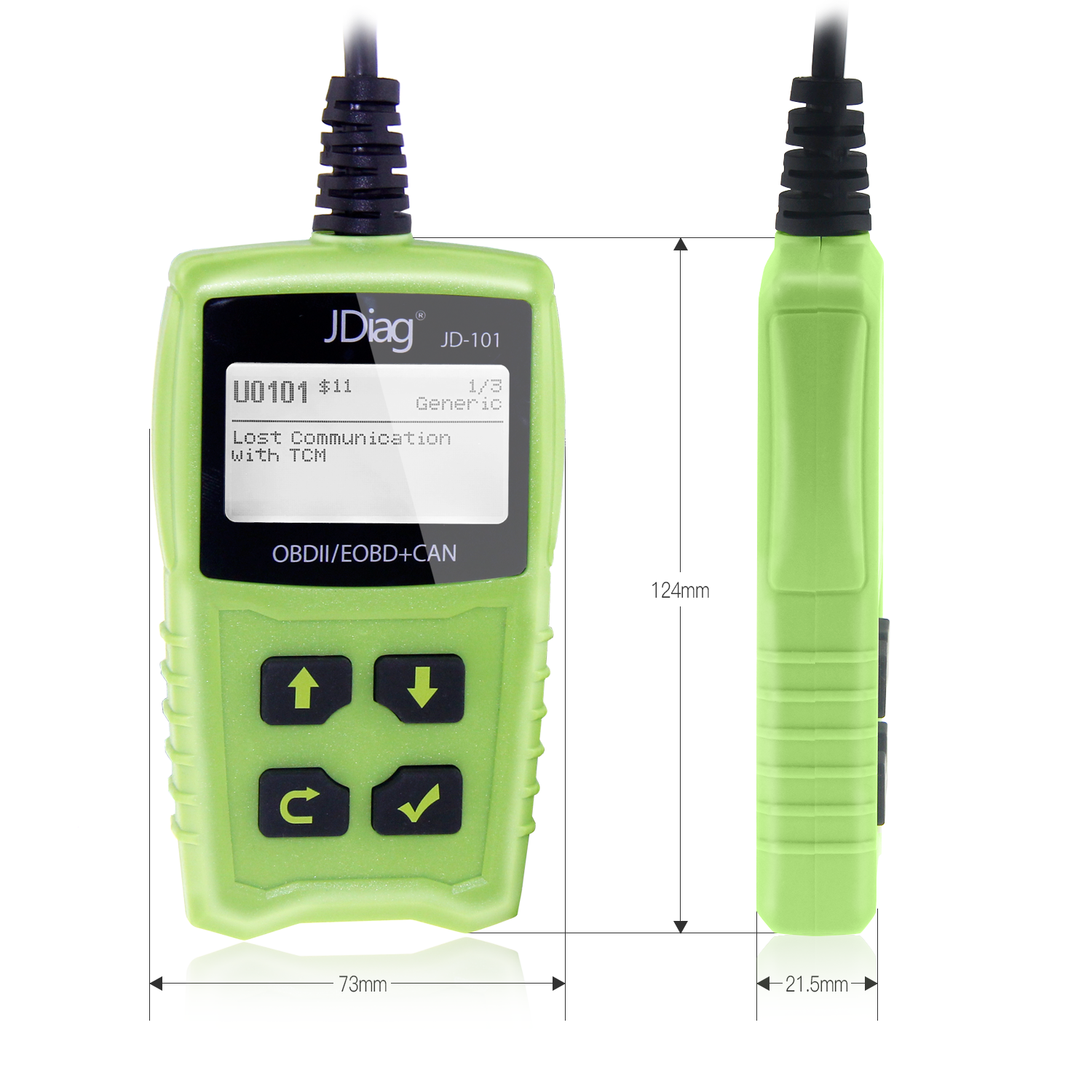

    5. Length\Width\Height: 124 mm (4.61”) \73 mm (2.83”)\22 mm (0.71”)
    6. Weight: 0.12 KG (0.26 LB)

    1 x JD101 Interface with OBD II Cable

    1 x Multi-languages User Manual


    1. OBDII Support

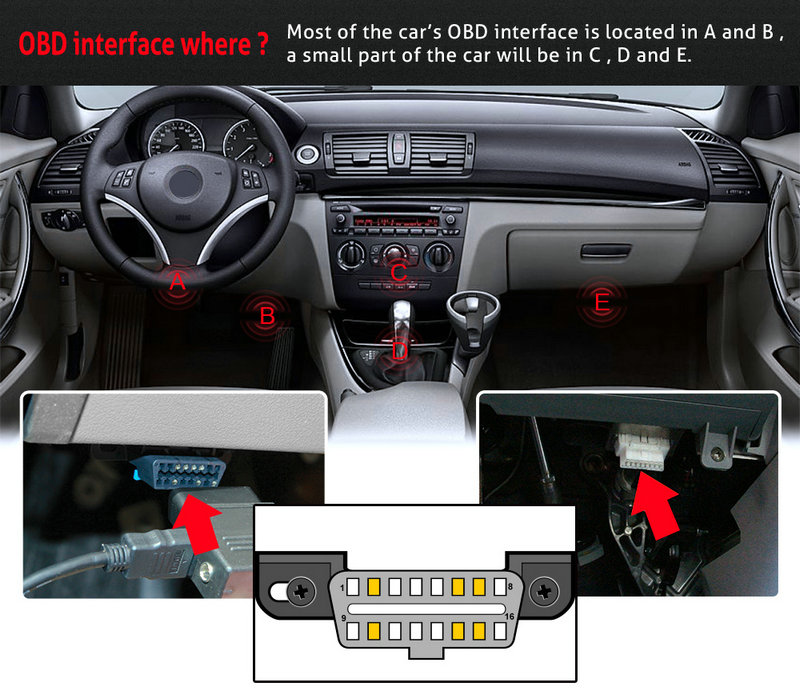

    2. DLC Location
