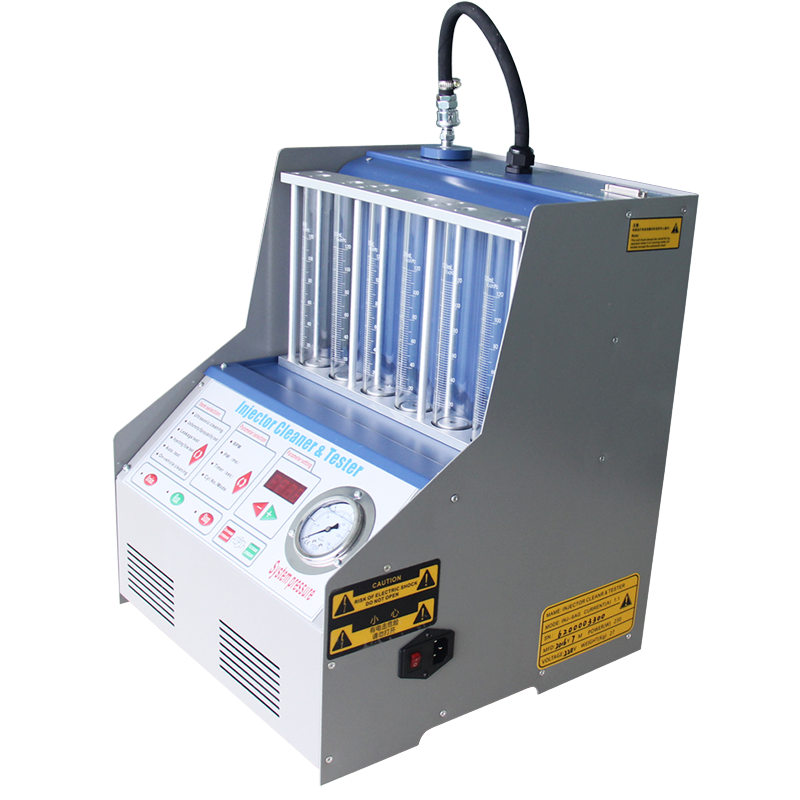

JDiag Injector Cleaning Tester by Ultrasonic and Microcomputer

Product Detail

JDiag Injector Cleaning Tester is a mechanical and electrical integration products which combine the ultrasonic cleaning technology and microcomputer hydraulic closed-loop control cleaning detection technology together.






Description




This product can simulate different conditions of engine, can do the test and clean to a variety of automotive fuel injector, and it also can do demolition-free cleaning to injector and fuel supply system of cars. The equipment is necessary and preferred for automotive repair industry, vehicle maintenance, automotive research and teaching and training department .




Using strong ultrasonic cleaning technology, powerful in cleaning. It is using electronic pressure control technology, hydraulic stability, adjustable range. Using imported oil pump to ensure long-term stable use. Using high-definition digital tube display, the operation is clear, easy to learn. Tank Liquid Position can be Intuitive displayed and test agent can be recycled. Bright background light can help u you can clearly see the work of the injector at the time of the situation and apply to a variety of models can be replaced and dual-type dual-inlet-fuel injector universal combination of dual-platform. You can adjust at will the test time, frequency, number of injections, the shortest switching cycle and so on of the injectors in the allowable adjustment range.




Functions




Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.

Reverse cleaning: Can do completely clean to the internal of  the injector and dirt attached on the filter .

Free demolition cleaning: Coming with full kinds of free demolition cleaning connectors for all car brands, can do free demolished cleaning maintenance to a variety of car models.

Uniformity detection: Detection of the uniformity of the fuel injection of each injector .

Atomization observation: Can do a comprehensive and careful observation of the atomization spray of injector with the background light.

Seal test: Can detect the sealing and dripping situation of the injector under high pressure .

Fuel injection detection: You can detect the amount of fuel injection of the injector in a specific operating conditions parameters (such as the same time, the same number of times)

Auto test: In a specific working conditions parameters, to test injectors by simulating different working conditions.







Specification




* Power supply: AC220V±10%, 50/60Hz;AC110V±10%, 50/60Hz.

* Input power: 250W;

* Ultrasonic cleaner power: 100W;

* Simulated RPM range: 10-9990rpm; step: 10rpm;

* Time range: 1-9999s;

* Pulse width: 0.5-25ms; step 0.1 ms;

* Fuel tank capacity: 4700ml;
